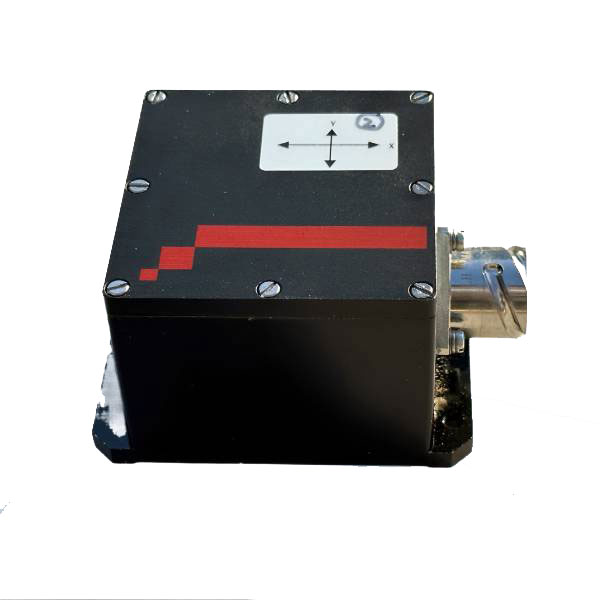

Glasfaser-Gyroskop-hohe Präzisionsneigungsinstrument
  • Glasfaser-Gyroskop-hohe PräzisionsneigungsinstrumentGlasfaser-Gyroskop-hohe Präzisionsneigungsinstrument
  • Glasfaser-Gyroskop-hohe PräzisionsneigungsinstrumentGlasfaser-Gyroskop-hohe Präzisionsneigungsinstrument

Glasfaser-Gyroskop-hohe Präzisionsneigungsinstrument

Jio-Fog001 Faser-Gyroscope-hohe Präzisionsneigungsinstrument ist ein dreiachsischen Beschleunigungsmesser, das auf mikromechanischer Technologie basiert. Der Tachometer verwendet die fortschrittliche Signalverarbeitungsalgorithmus -Technologie, um unter komplexen Arbeitsbedingungen hochpräzise Neigungsinformationen zu erhalten. Dieses Produkt basiert auf der Leistung des Servo -Klinometers unter Verwendung von 4 ~ 20 mA -Simulationsausgaben und digitaler Ausgabe in zwei Formen.

Modell:JIO-FOG001

Anfrage absenden

Produktbeschreibung

JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.

Our services

JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope

Application scenarios

-The structure alignment (rolling machine, AC generator, etc.)
-A safety detection (crane, maritime platform)
-D horizontal measurement (road, railway track)
-Re angle measurement
-The positioning of shooting platform, radar antenna

Product Features

-The performance of the servo inclination instrument, the inclination accuracy is better than 0.01 °
-Puramental range: -40 ~ 65 ℃
-The high anti -impact and vibration resistance capacity, vibration environmental performance is not disordered
-In IP65 sealed shell, suitable for harsh environments
-The interface type is rich, supporting standard interfaces such as RS422, current/voltage output
-He high reliability

Electrical characteristics

-Delectrical power supply: 24V DC (typical value)
-Reze power: 1.5W (maximum value)
-The ripple: 100mv (peak value)

Fiber optic gyroscope-High precision inclination instrument Mechanical Dimensions



Technical parameters:

Environmental parameters
Operating temperature -40℃ 至 +80℃
-40 ℃ to +80 ℃
Storage temperature -55℃ 至 +85℃
-55 ℃ to +85 ℃
Network NF EN 61326 (Industry)
Shock 5g/20Hz to 500Hz
Impact 200g/6ms
保护
Protection
IP 65
Universal parameter
Power supply 240V DC, 35mA (max) (4-20mA version: 55mA (max)
Power consumption 60mA (maximum value) (voltage output) / 100mA (maximum value) (current output)
Bandwidth 2 ~ 10Hz determines according to needs
Output ±5V or 4-20mA or RS422 serial digital output
Nonlinear error <0.1% FS
Non-repeatability and hysteresis <0.05% FS
Cross Axis Sensitivity <0.005g/g
Deviation 0.1% FS
Electronic noise <2mVrms (0-1kHz)
Zero temperature drift 0.01% FS/℃
Sensitivity temperature drift 0.01% signal/℃
Selection guide
Range Bandwidth Product reference voltage output Product reference current output
±3° 4Hz 690 041 489 690 041 485
±5.75° 4Hz 690 041 419 690 041 415
±14.5° 5Hz 690 041 429 690 041 425
±30° 6Hz 690 041 439 690 041 435
±45° 8Hz 690 041 449 690 041 445
±90° 12Hz 690 041 459 690 041 455
Choose custom
Special bandwidth, special range and output signal, zero offset (unipolar output), linearity < 0.05% FS
Integrated temperature sensor
